19" 650mm width 950mm depth Wall Mounted Enclosure
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC, IP65 |
| Model Number: | ET659585W-EQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C,T/T, etc |
| Supply Ability: | 10,000 sets per month |
|
Detail Information |
|||
| Proof: | Waterproof, Dustproof, Sunproof | Protection Leve: | IP55 |
|---|---|---|---|
| Material: | Galvanized Steel， Single Wall With Heat Insulation | Size: | W×D×H 650×950×850mm |
| 19 Inch Standard Rack: | 15U | Cooling: | 500W Air Conditioner |
| High Light: | 950mm depth Wall Mounted Enclosure,650mm width Wall Mounted Enclosure,650mm width outdoor data cabinet |
||
Product Description
19" Thermostatic Outdoor Wall Enclosure Weatherproof Wall Mounted Cabinet Air Conditioner Cooling IP55
Summary
This cabinet can contains 13U 19” power/equipment. Support wall mounted installation. Using high quality galvanized steel material, waterproof, moistureproof, dustproof, and corrosion resistance.
Application Fields
ESEL company provides full range of temperature control products and cabinet solutions for
- Telecommunication
- Data Center
- Base station
- Solar based installations
- Wireless cell sides & switches
- Industry Automation
- Energy Storage
Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET659585W-EQ |
| Size | External Size: 650mm×950mm×850mm(W×D×H) | |
| Component | The whole cabinet is composed of two parts: the top cover, the cabinet body. The installation method is wall mount. | |
| Material | High quality galvanized steel plate, single wall with heat insulation | |
| Structure |
(1) The wall, cabinet door, top cover and bottom are all single layer steel with heat insuation. (2) One front door, hidden zinc alloy hinge; outdoor special steel lock,lock core assemble protection cover, lock body assemble three point locking device (3) Install the wind lock on the inside of the cabinet door; (4) The grooved door is equipped with a seal rubber strip, clinging to the inner side of the door, waterproof and dustproof (5) The compartment including 19” rack (6) Reserving the cable entry hole at the bottom of the cabinet |
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification | |
| Color | Grey | |
| Ingress Protection | IP55 | |
| Working Temperature | -40℃～+75℃ | |
| Cooling Method | Compressor Air Conditioner | AC220V 50Hz 500W |
Environmental Parameters
| Working Conditioning | ||
| Temperature | Temperature | Working Temperature: -20°C ~ 55°C |
| Storage Temperature: -40°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
Dimension Diagram:

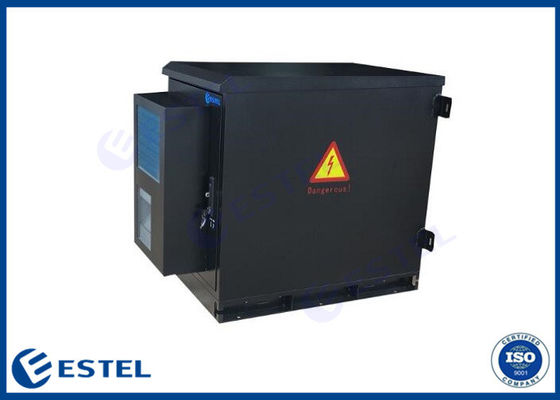

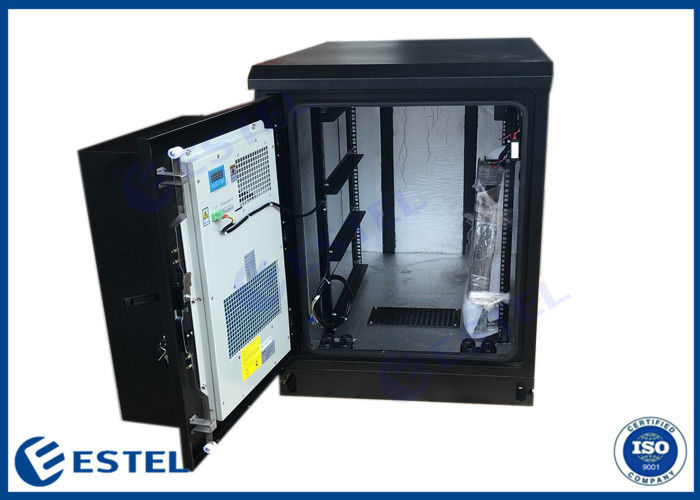

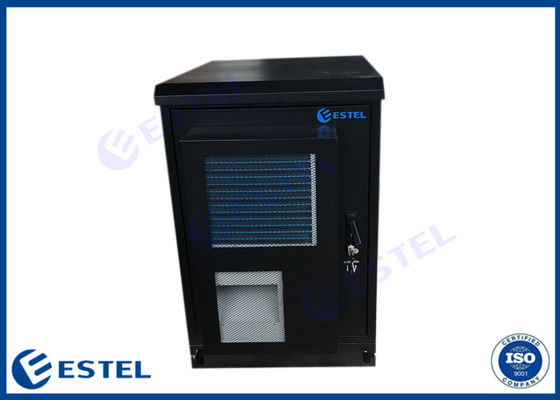

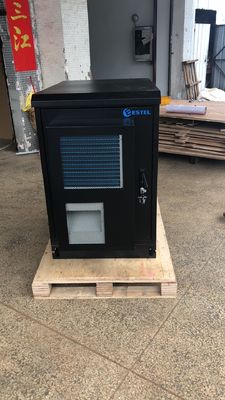

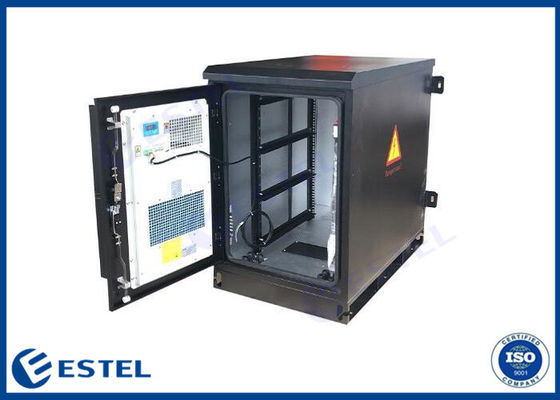

Product Picture
