Galvanized Steel 19inch ESTEL Outdoor Wall Enclosure

Galvanized Steel 19inch ESTEL Outdoor Wall Enclosure

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP65
Model Number: ET6565115WF-UP-F

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: L/C,T/T, etc
Supply Ability: 10,000 sets per month
Get Best Price Contact Now

Detail Information

Size: W×D×H 650×650×1150mm Layout: The Upper Is 19” Equipment Bay, The Lower Part Is Battery Bay
Material: Galvanized Steel , Single Wall With Heat Insulation Protection: IP55
Cooling: Fan Accessory: Environment Monitoring Unit, Power Distribution Unit, Rectifier
High Light:

ESTEL Outdoor Wall Enclosure

,

19inch Outdoor Wall Enclosure

,

19inch outdoor network cabinet

Product Description

Galvanized Steel 19inch ESTEL Outdoor Wall Enclosure



Galvanized Steel Outdoor Wall Enclosure IP55 19" Equipment Battery Wall Mounted Cabinet Theftproof Powder Coating





Summary



This cabinet can contains 19” power/equipment and two layer battery. Support wall mounted installation. Using high quality galvanized steel material, waterproof, moistureproof, dustproof, and corrosion resistance.



Application Fields



ESEL company provides full range of temperature control products and cabinet solutions for

- Telecommunication

- Data Center

- Base station

- Solar based installations

- Wireless cell sides & switches

- Industry Automation

- Energy Storage



Specifications





Model ET6565115WF-UP-F
External Dimension W×D×H 650×650×1150mm
Layout The upper is 19” equipment bay, the lower part is battery bay
Door With one front door,and anti-theft three point lock for outdoor cabinet (support padlock)
Hinge Embedded
Material Galvanized steel; single wall with heat insulation
Cable enter method On the bottom
Color RAL7035, powder coating finish
Ingress Protection IP55
Noise Level 60-65dB
Temperature Control Cooling Fan cooling
AC and DC power distribution unit

AC input: 63A/2P*1;

AC output: 63A/2P*1;

DC input : 63A/1P *1;

DC output : 16A/1P*1;

DC output : 10A/1P*3;

DC output : 6A/1P*3

Circuit breaker brand: Schneider

Environmental monitoring system

1* environment monitoring unit, 1U, SNMP communication;

1* smoke sensor;

1* water sensor;

1* temperature & humidity sensor;

sensor;

1* door sensor

power supply: DC48V







Working environment



Temperature Temperature Working Temperature: -20°C ~ 55°C
Storage Temperature: -40°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2

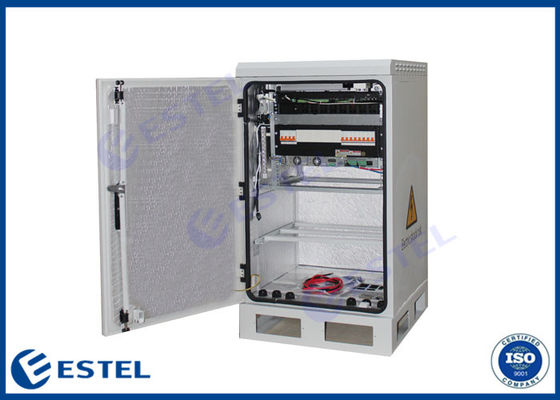

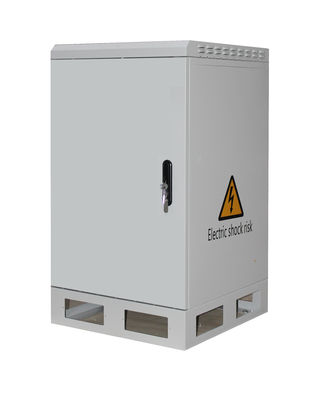

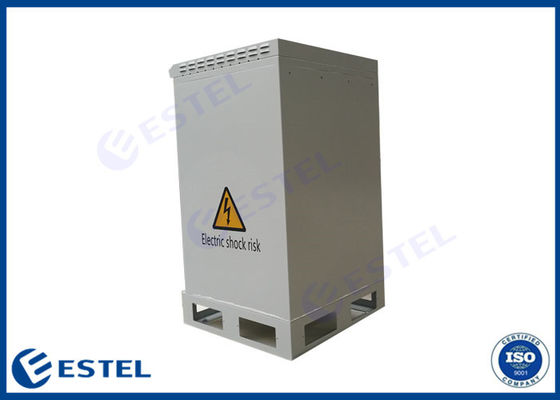

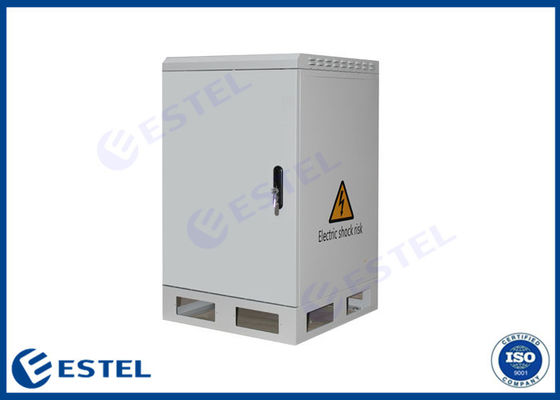

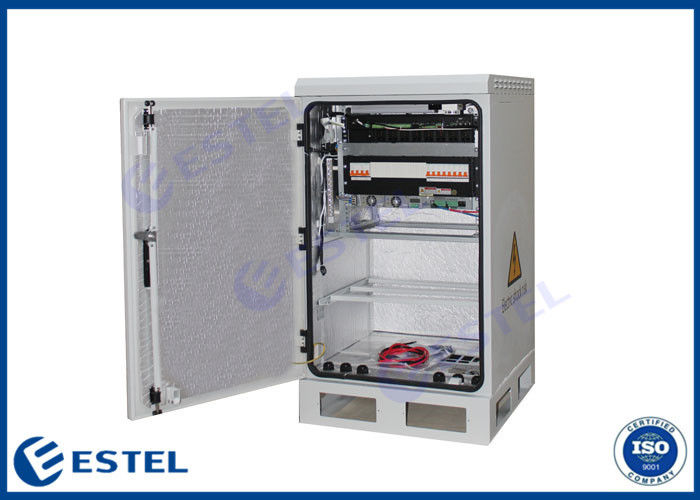

Cabinet Picture



Galvanized Steel 19inch ESTEL Outdoor Wall Enclosure  0







Cabinet Packing



The cabinet packing is wooden case is free fumigation plywood, suitable for export, in compliance with GB3873-83, damp proof and shock proof. The outside of the packing is painted with damp proof sign, shock proof sign, direction sign, etc.



Galvanized Steel 19inch ESTEL Outdoor Wall Enclosure  1
