220V AC Outdoor Cabinet Air Conditioner 3000W Cooling For Telecom Cabinet
Product Details:
| Place of Origin: | China |
| Brand Name: | Envicool |
| Model Number: | EC30HDNC1C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | depends on order quantity |
| Packaging Details: | Wooden case |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 1000 sets per month |
|
Detail Information |
|||
| Application: | Cooling For Outdoor Telecom Cabinet | Installation: | Door Mounted |
|---|---|---|---|
| Cooling Capacity: | 3000W | Input Voltage: | 220VAC |
| Input Frequency: | 50Hz | Refrigerant: | R134a |
| High Light: | 220V AC Outdoor Cabinet Air Conditioner,Outdoor Cabinet Air Conditioner 3000W,compact Telecom Cabinet Air Conditioner |
||
Product Description

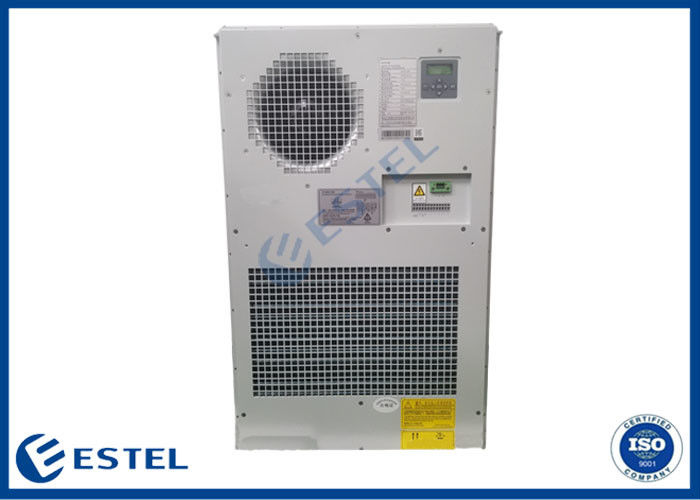

220VAC Outdoor Cabinet Cooling System Air Conditioner 3000W with IP55 Protection Level
Model: EC30HDNC1C
Envicool EC Series Air Conditioner
Our cooling range spans from 400W to 5000W.
We offer other series of products suitable for outdoor cabinets and base station usage, including DC air conditioners and HC combo air conditioners with heat pipes.
220V AC 3000W Outdoor Cabinet Cooling System Air Conditioner
The EC30HDNC1C is a compact and highly efficient AC-powered air conditioner designed specifically for applications with limited space. It offers uncompromised functionality and performance.
Key Features:
- 220VAC power input
- 3000W cooling capacity at L35/L35
- Door-mounted for easy integration in outdoor cabinets
- Standard configuration with heater
- Wide working temperature range: -40ºC to +55ºC
Benefits of Model: EC30HDNC1C
- Energy-saving
- Minimum maintenance with a lifespan of over 10 years
- Environmentally friendly with R134a refrigerant and RoHS compliance
- IP55 and corrosion-proof
- Dedicated design with delay start feature
- RS485 for remote control
Applications:
- Outdoor radio base stations/telecom cabinets
- Outdoor power supply cabinets
- Outdoor gen-set control cabinets
- Outdoor solar-powered telecom cabinets
- Outdoor wind power control cabinets
Data Sheet for Model: EC30HDNC1C
| Parameter | Model | |
| Dimensions,Weight & Mount | EC30HDNC1C | |
| External Dimensions (HxWxD) mm | 746×446×300 | |
| External Dimensions (Hx Wx D)With Flange mm mm |
783×483×300 | |
| Weight kg | 48 | |
| Mounting Method | Door Mounted | |
| Application | Outdoor | |
| Environmental Protection & Performance | ||
| Working Temperature Range ℃ | -40～+55 | |
| Noise Leve dB(A) | 65 | |
| IP Protection Level | IPX5 | |
| Refrigerant | R134a | |
| RoHS Compliant | Yes | |
| Cooling/Heating Capacity | ||
| Cooling Capacity@L35/L35 W | 3000 | |
| Heating Capacity (Optional) W W |
1000 | |
| Power Consumption | ||
| Power Consumption@L35/L35 W | 1200 | |
| Current@L35/L35 A | 5.70 | |
| Airflow | ||
| Internal Airflow m³/h | 850 | |
| Power Supply | ||
| Power Supply Range V,Hz | 220±15%,50/60 | |
| Rated operating voltage -Controller V,Hz | 220,50/60 | |
| Rated operating voltage -Cooling/Heating System V,Hz | 220,50/60 | |
| Max.Current A | 9.7 | |
Dimensions:
