220V AC Outdoor Cabinet Air Conditioner 600W With IP55 Protection Level
Product Details:
| Place of Origin: | China |
| Brand Name: | Envicool |
| Model Number: | EC06HDNC1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | depends on order quantity |
| Packaging Details: | Wooden case |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 1000 sets per month |
|
Detail Information |
|||
| Application: | Cooling For Outdoor Telecom Cabinet | Installation: | Door Mounted |
|---|---|---|---|
| Cooling Capacity: | 600W | Input Voltage: | 220VAC |
| Input Frequency: | 50Hz | Refrigerant: | R134a |
| Highlight: | 48V DC Outdoor Cabinet Air Conditioner,Outdoor Cabinet Air Conditioner 600W,Outdoor Telecom Cabinet Air Conditioner |
||
Product Description
1. 220VAC Outdoor Cabinet Cooling System Air Conditioner 600W with IP55 Protection Level
Model: EC06HDNC1B
Envicool EC Series Air Conditioner
Our cooling range spans from 400W to 5000W.
We offer other series of products suitable for outdoor cabinets and base station usage, including DC air conditioners and HC combo air conditioners with heat pipes.
2. 220V AC 600W Outdoor Cabinet Cooling System Air Conditioner
The EC20HDNC1B is a compact and highly efficient AC-powered air conditioner designed specifically for applications with limited space. It offers uncompromised functionality and performance.
3. Data Sheet for Model: EC06HDNC1B
|
Parameter
|
Model |
EC06HDNC1B
|
|
Dimensions, Weight & Mount
|
||
|
External Dimensions (Height x Width x Depth)
|
mm
|
545×315×170
|
|
External Dimensions (Height x Width x Depth) With Flange
|
mm
|
583×352×170
|
|
Weight
|
kg | 16.5 |
|
Mounting Method
|
Door Mounted
|
|
|
Application
|
Outdoor | |
|
Environmental Protection & Performance
|
||
| Working Temperature Range | ºC | -40 to +55 |
|
Noise Level |
dB(A) | 50 |
|
IP Protection Level
|
IP 55
|
|
|
Refrigerant
|
R134a | |
|
RoHS2 Compliant
|
Yes | |
|
Cooling/Heating Capacity
|
||
|
Cooling Capacity@L35/L35
|
W | 600 |
|
Heating Capacity (Optional)
|
W | 500 |
|
Power Consumption
|
||
|
Power Consumption@L35/L35
|
W | 240 |
|
Current@L35/L35
|
A | 1.15 |
|
Airflow
|
||
|
Internal Airflow
|
m3/h | 140 |
|
Power Supply
|
||
|
Power Supply Range
|
VDC | 220±15%,50/60 |
|
Rated operating voltage - Controller
|
VDC | 220, 50/60 |
|
Rated operating voltage - Cooling/Heating System
|
VDC | 220, 50/60 |
|
Max. Current
|
A | 2.0 |

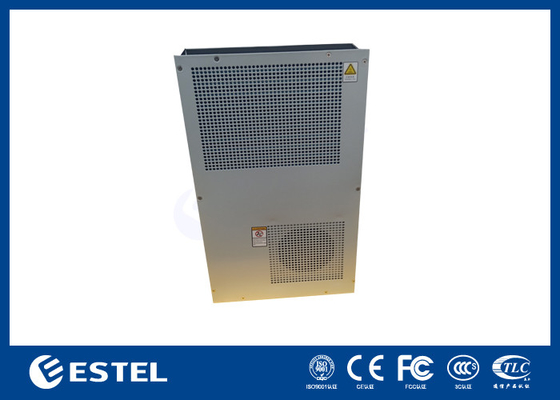

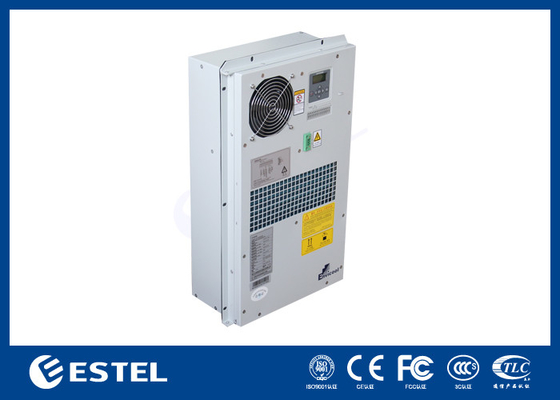

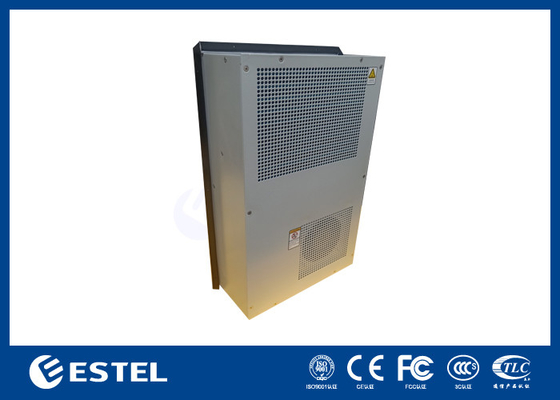

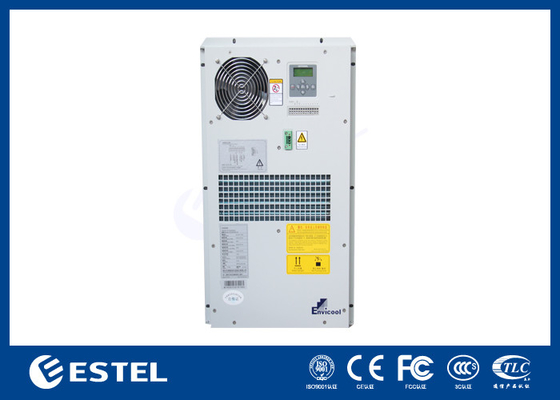

4. 220VAC Outdoor Cabinet Cooling System Air Conditioner 600W Showing :
5. Key Features:
- 220VAC power input
- 600W cooling capacity at L35/L35
- Door-mounted for easy integration in outdoor cabinets
- Standard configuration with heater
- Wide working temperature range: -40ºC to +55ºC
6. Benefits of Model: EC06HDNC1B
- Energy-saving
- Minimum maintenance with a lifespan of over 10 years
- Environmentally friendly with R134a refrigerant and RoHS compliance
- IP55 and corrosion-proof
- Dedicated design with delay start feature
- RS485 for remote control
7. Applications:
- Outdoor radio base stations/telecom cabinets
- Outdoor power supply cabinets
- Outdoor gen-set control cabinets
- Outdoor solar-powered telecom cabinets
- Outdoor wind power control cabinets
8. Dimensions:
9. Packing and Shipping
Generally our products are pakced with plywood case to protection the cabinet very well, inner will use the foam for anti-scratch. Our products can be shipped all over the world
10. Why Choose Us?
- 15 years manufacturer selling
- Wholesale/ Customize sample/OEM ODM are available
- Competitive price
- High product quality ,Strict quality control
- Intime Delivery: 30-35 working days after receipt of the deposit
- Best service !
11. Our factory and product
.
